EXT343-30W EXT4-343-30W G343-30W

description

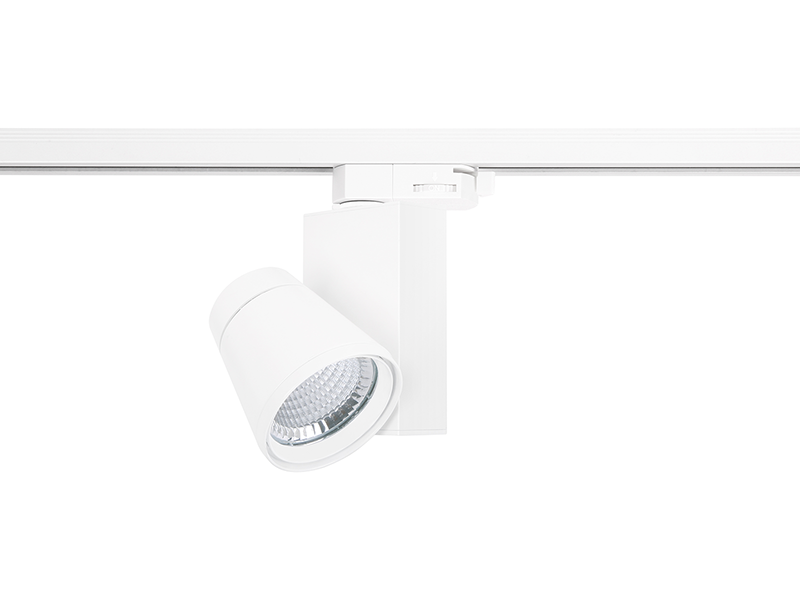

Single circuit commercial track fitting also available in three circuit. Contemporary LED tapered cylinder with rectangular gear box. Effective heat management systems for extended expected LED fitting life time. Features high efficiency LED technology. Recessed chip design for superior visual comfort. Available with various beam options. Surface mount version available on request.
Wattage
30W
Lumen Output
3264 Lm / 3400Lm / 3502 Lm
Input
36V, 700mA
Beam Angle
20°/70°
IP Rating
IP20
Material
Die-Cast Aluminium
Dimmable
Optional
Include Driver
Yes (HEP)
Mounting Type
Single Circuit
LED Type
COB LED
Colour Temperature
2700K / 3000K / 4000K
Fitting Colour
Black / White

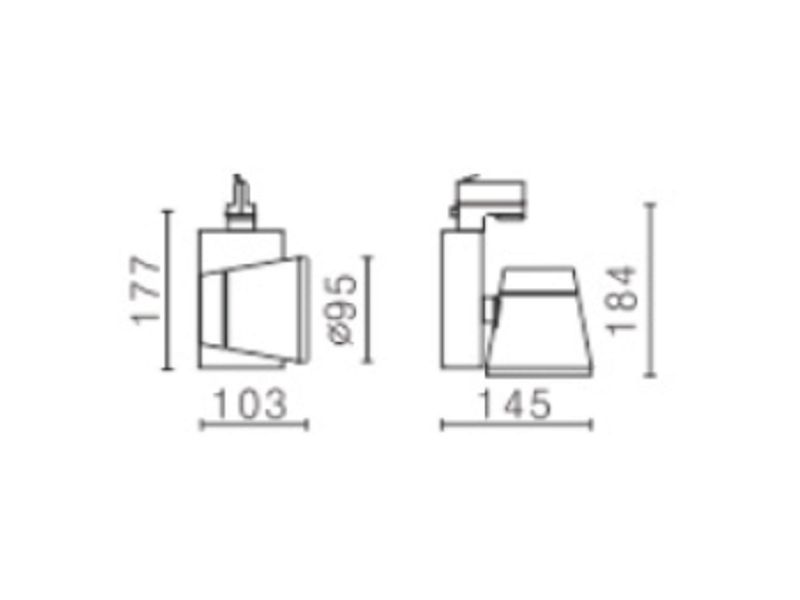

Diameter
95mm
Height
103mm
Call Us
EXT343: Single Circuit Version
