LED301-3W-T

description

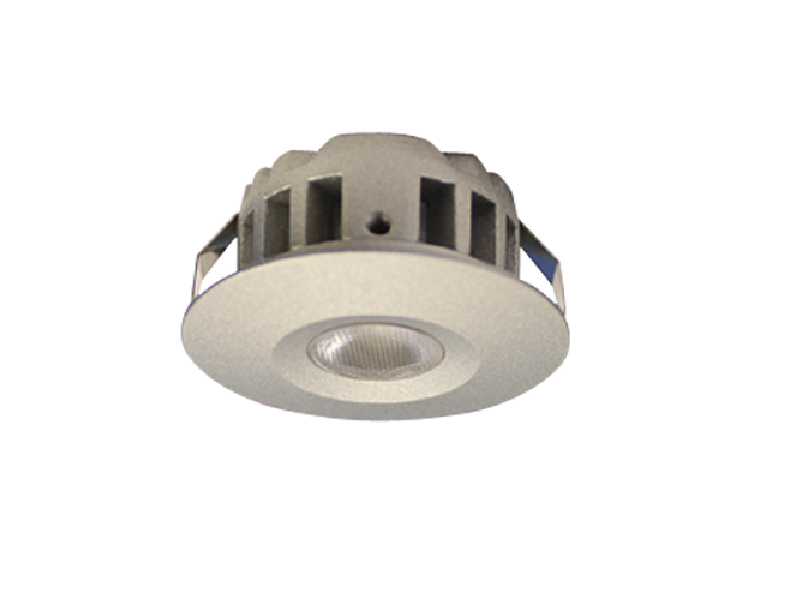

Die-cast aluminium 1.2W or 3W LED recessed cabinet light. Features 30° beam angle lens and reflector.
LED Type:
COB LED
Material:
Powder Coated Die-cast Aluminium Body
Inclusion:
50cm lead with connector
Dimmable:
Yes, if using dimmable driver
Wiring Method:
Series Connection for constant current (350/700mA) ; Parallel Connection for 12Vdc constant voltage versions
Include Driver:
No
Mounting Method:
Recessed
Wattage
1.2W or 3W
Input
350mA, 700mA or 12VDC
Lumen Output
85lm (1W) / 135lm (3W)
Beam Angle
30°
Colour Temperature
3000K
Fitting Colour
White or Black Face
Size D x H
40 x 22 mm
Cut Size D
33 mm
Call Us

Die-cast aluminium 1.2W or 3W LED recessed cabinet light. Features 30° beam angle lens and reflector.

Ordering notes: 12vdc variations on the 1.2/3w fitting consume more power but same light output. This is due to the design of the DC-DC converter used. Please ensure you can fit the dc-dc converter in for 12vdc variations (approx 25 x 25 x 25mm) - especially for joinery with poor/no access. Wattages descriped below for 12v versions are minimum recommended loads. Always consider allowing for 30% headroom on trasnformers too. Please consider carefully which version you need - especially if replacing similar.
