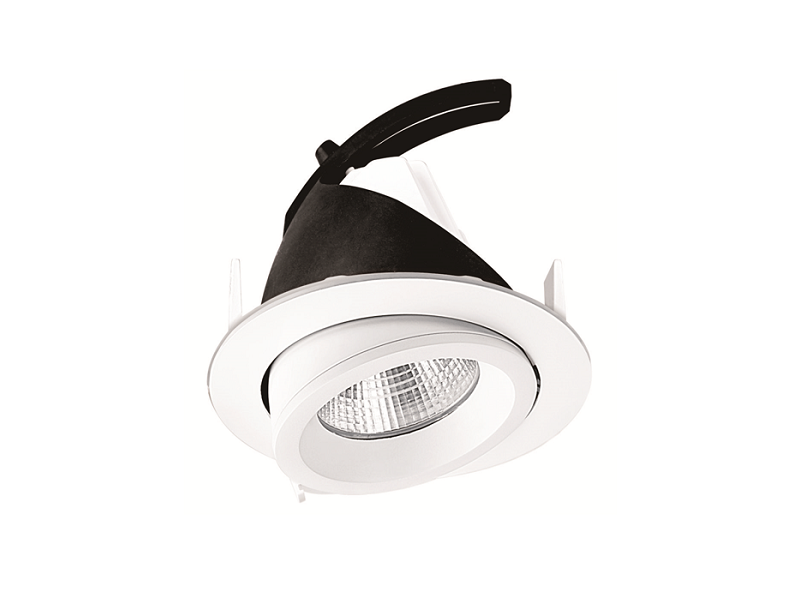

new Share to D064-R D065-R D066-R description High power COB LED snorkel available in 18W, 34W and 38W output options. CRI90 for high end installations requiring high end colour reproduction. 38W replaces our previous G9438. 355° rotation and 60° tilt enables wall washing or downlight functionality. Wattage 18W (D064-R), 38W (D065-R), 34W (D066-R) Lumen Output 2016 Lm / 2100 Lm / 2163 Lm / 2227 Lm (D064-R), 4400 Lm / 4532 Lm (D065-R), 4200 Lm (D066-R) Input 500mA, 36V (D064-R), 1050mA, 36V (D065-R), 900mA, 36V (D066-R) Beam Angle 20° / 70° (D064-R), 40° / 70° (D065-R), 40° / 70° (D066-R), IP Rating IP20 CRI Rating CRI90 Material Aluminium Dimmable Yes, with selected dimmers Include Driver Dimmable driver with flex & plug (D064-R), Non-dimmable driver with flex & plug (D065-R, D066-R) Optional Beam 10°, 40° (D064-R), 12°, 20°, 40° (D064-R), 40° available on request LED Type COB LED Colour Temperature 2700K (D064-R only) / 3000K / 4000K / 5000K (D064-R only) Fitting Colour Black / White Size D x H 138 x 109 mm (D064-R), 188 x 163 mm (D065-R), 162 x 156mm (D066-R) Cut Size D 125 mm (D064-R), 175 mm (D065-R), 150 mm (D066-R) Dimming Option TRIAC, DALI, 1-10V Dimming Option available Add Inquiry Call Us PDF File Recommended Products
