DMXSPI

description

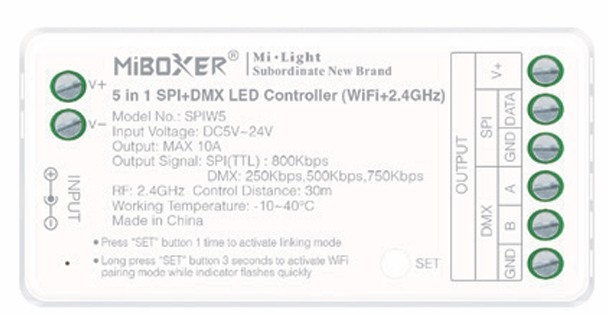

5 IN 1 SPI+DMX LED CONTROLLER (WIFI + 2.4GHZ)
INPUT VOLTAGE
DC5V-24V
OUTPUT CURRENT
MAX 10A
STANDBY CURRENT
20MA
PROTOCOL
WIFI+RF 2.4GHZ
CONTROL DISTANCE
RF: 30M
IP RATING
20
DIMENSION
74.5 X 36 X 17mm
OUTPUT SIGNAL
SPI(TTL) 800KBPS (MAX 1024 PIXEL)
OUTPUT SIGNAL
DMX: 250KBPS (MAX 256 PIXEL)
OUTPUT SIGNAL
DMX: 500KBPS (MAX 512 PIXEL)
OUTPUT SIGNAL
DMX: 750KBPS (MAX 768 PIXEL)
Call Us

5 in 1 SPI+DMX led controller that supports WIFI+2.4ghz control to control mono, white CCT, RGB,RGBW and RGBCCT strip lights. Supports DMX/ SPI control (seletable via APP only) and supports products of DC5-24 VDC input (strip light must match input voltage). Supports 28 white colour and 80 RGB colour modes and can be dimmed via remote/app. Requires compatible power supply and SPI (not included). Wall controller availble as a seperate purchase.
