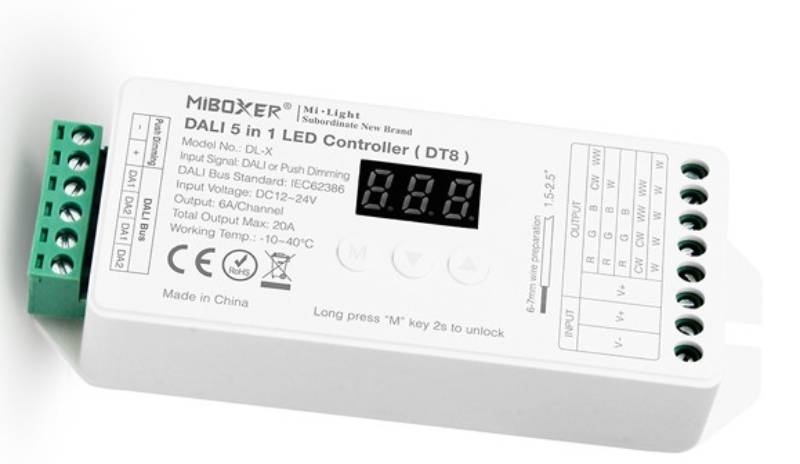

Features The LEDRGBRE-DLX constant voltage LED strip controller adopts DALI standard protocol and supports DT8 type. PWM pulse dimming output, smooth brightness dimming, and strong compatibility. Five output modes, including brightness, color temperature, RGB, RGBW, RGB+CCT. Widely used in hotel lighting and home lighting control.  Support DALI standard protocol IEC62386-102,207,209. Support DT8 type. Tc, xy coordinates, RGBWAF. Support single color, color temperature, RGB, RGBW and RGB+CCT output modes. Support DALI standard protocol IEC62386-102,207,209. Support DT8 type. Tc, xy coordinates, RGBWAF. Support single color, color temperature, RGB, RGBW and RGB+CCT output modes. Support digital tube to display address and group information. And can be quickly set by pressing the button. Support digital tube to display address and group information. And can be quickly set by pressing the button. Brightness dimming and ON/OFF via push button. Logarithmic or linear dimming curve optional. With anti-reverse protection function. With short-circuit, over-current protection and recovery functions.

Strip on output must match input voltage. A seperate 12 or 24v DC power supply is required to power this device and the strip.
