EXT861L EXT4-861L GU861L

description
10W or 15W LED COB track spot features low glare reflector, 355°rotation, 180° tilt, sleek barrel design and recessed adaptor. Optional 36° or 60° lens available. Not suitable for exterior applications. Surface mount version available on request.
Wattage per Metre
10W / 15W
Lumen Output
10W (700 Lm / 800 Lm), 15W ( 1500 Lm)
Input
10W (700mA, 16V), 15W (350mA, 43V)
Beam Angle
10W (36° / 60°), 15W (45°)
IP Rating
IP20
Material
Aluminium
Dimmable
Yes. RCADIMMERHD200T Triac dimmer suggested. C-BUS: Leading edge only, max. 6 per channel
Include Driver
Yes
Bracket Length
90mm
Mounting Type
Single Circuit / Three Circuit / Surface Mount
LED Type
COB
Colour Temperature
10W (3000K / 6000K), 15W (3000K, 6000K)
Fitting Colour
Black / Silver / White
Head Diameter
145mm
Head Length
55mm
CRI Rating
10W (CRI80), 15W (CRI90)
PDF File
Call Us

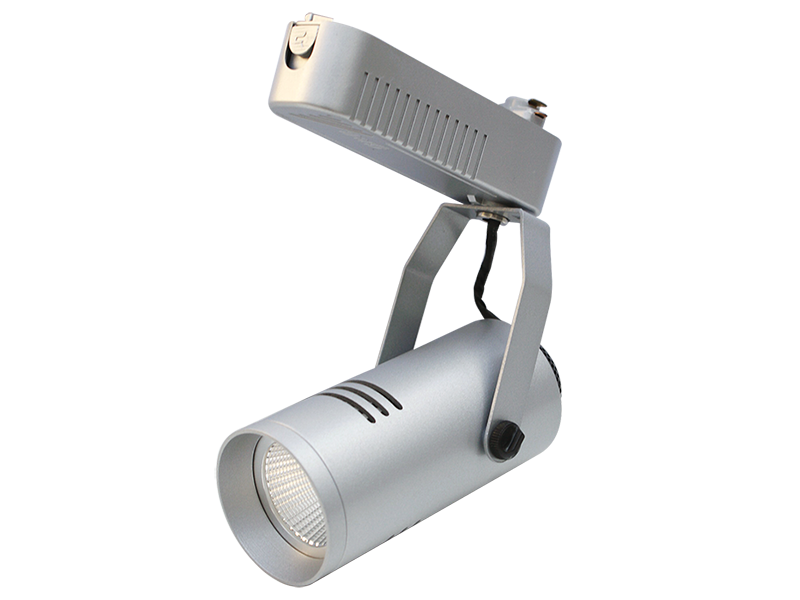

EXT861L Single Circuit Version

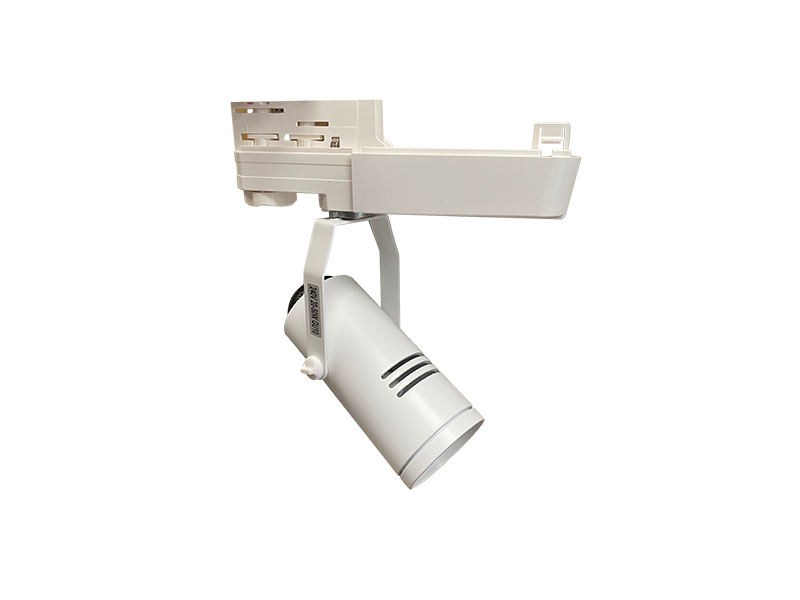

EXT4-861L Three Circuit Version

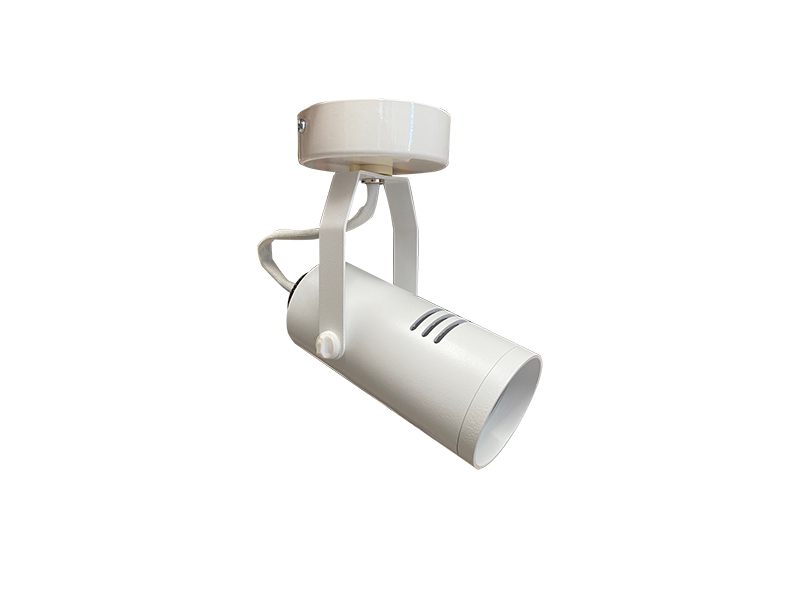

G861L Surface Mount Version

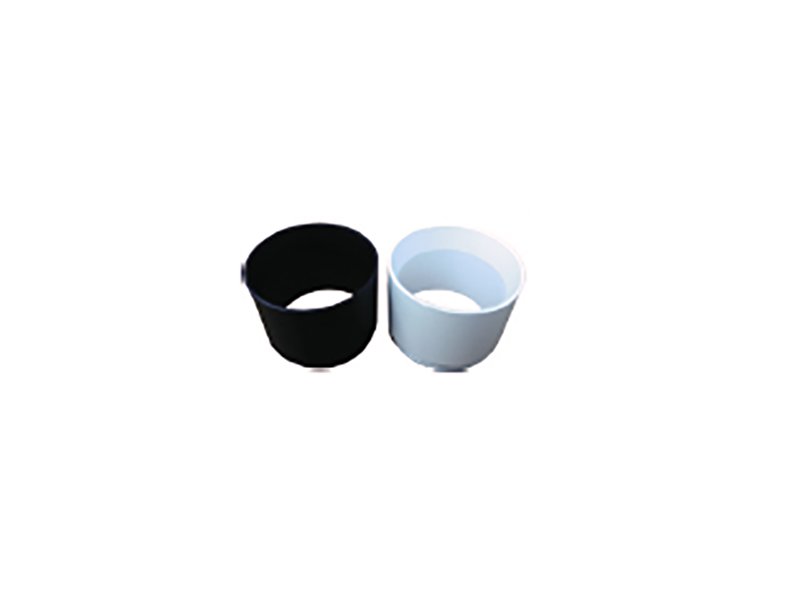

Optional hood to reduce glare & narrow beam angle
