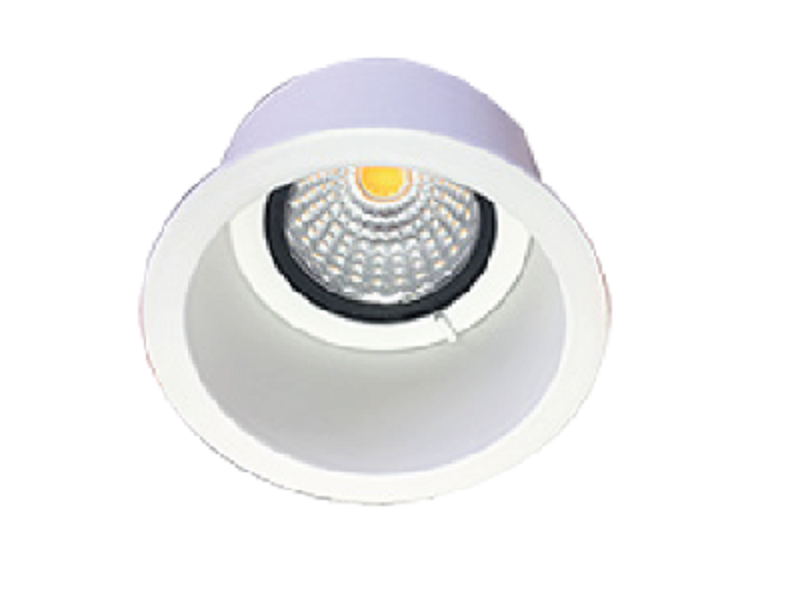

Share to RCAD1-201B12W description 80mm overall diameter. Deep recessed frame with contemporary narrow trim. Suitable for LED modules and MR16/GU10 lamps . Easy install dual spring system. Refer to lamp for total height measurement if required. DALI dimmable kits available on request at extra cost. Available as frame only or as a complete kit with illumination. Wattage 12W Lumen Output 1035 Lm / 1078 Lm Input 200mA, 60V Beam Angle 15°/60° IP Rating IP20 CRI Rating CRI 80, CRI 90 Frame Material Aluminium Module Material Metal Dimmable Yes (Kit version only) Include Driver Yes, Dimmable driver with Flex & Plug (Kit version only) Optional Accessories IC cage - fits over the 12w module allowing IC protection. Type Module Colour Temperature 3000K / 4000K Fitting Colour Black / White Size D 80 mm Cut Size D 70 mm Dimming Option TRIAC, DALI, 1-10V Dimming Option available PDF File Add Inquiry Call Us Recommended Products
