RCAD1-202B12W

description

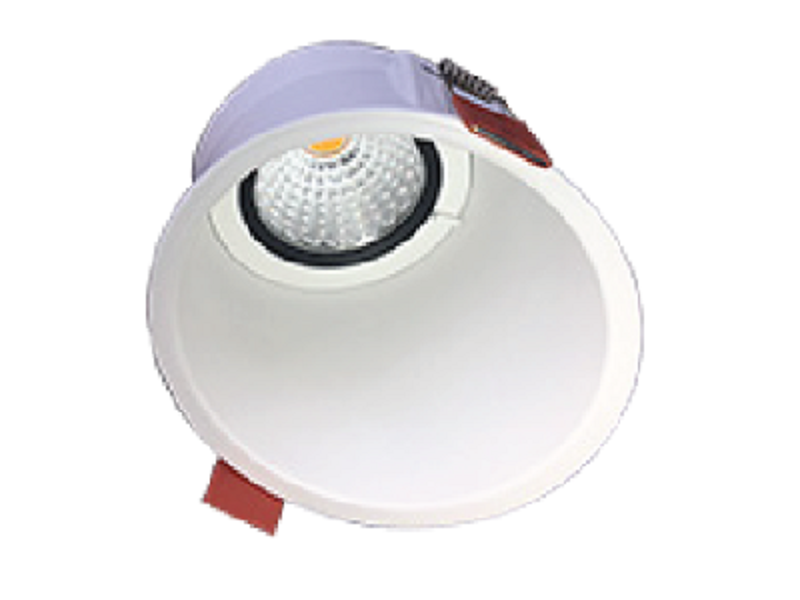

95mm deep recessed wall washer frame with contemporary narrow trim. Compatible with LED modules and MR16/GU10 lamps . Easy install dual spring system. Refer to lamp for total height measurement if required. DALI dimmable kits available on request at extra cost. Available as frame only or as a complete kit with illumination.
Wattage
12W
Lumen Output
1035 Lm / 1078 Lm
Input
200mA, 60V
Beam Angle
15°/ 60°
IP Rating
IP20
CRI Rating
CRI 80, CRI 90
Frame Material
Aluminium
Module Material
Metal
Dimmable
Yes (Kit version only)
Include Driver
Yes, Dimmable driver with Flex & Plug (Kit version only)
Optional Accessories
IC cage - fits over the 12w module allowing IC protection.
Type
Module
Colour Temperature
3000K / 4000K
Fitting Colour
Black / White
Size D
95 mm
Cut Size D
90 mm
Dimming Option
TRIAC, DALI, 1-10V Dimming Option available
