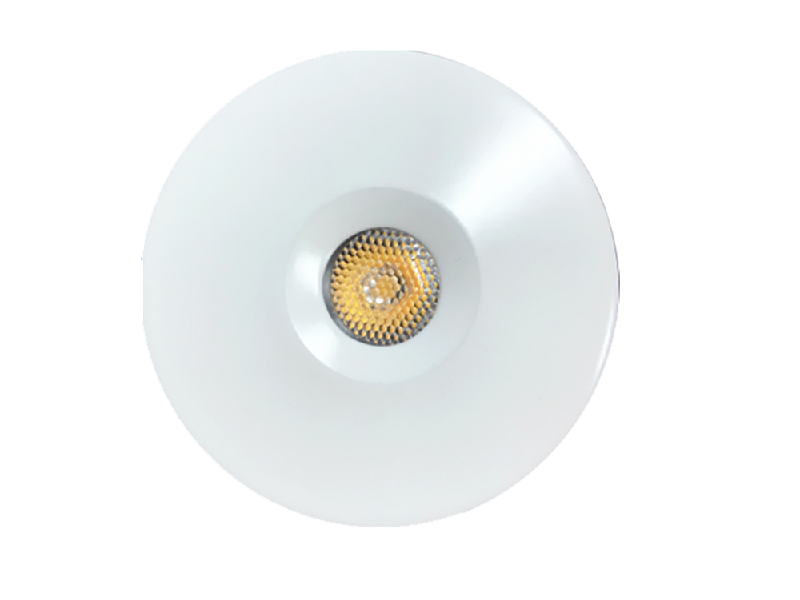

Share to LED301-1W-S description Die-cast aluminium 1.2W or 3W LED recessed cabinet light. Features 30° beam angle lens and reflector. Wattage 1.2W Lumen Output 68 Lm / 85 Lm Input 350mA Beam Angle 30° IP Rating IP20 CRI Rating CRI80 Material Powder Coated Die-cast Aluminium Body Dimmable Optional (Constant current version) ; No (Constant voltage version) Include Driver No, use LEDDR73500T to make 1.2W. 1:1 Configuration. No, use LEDDR4700L to make 3W. 1:1 Configuration. Wiring Method Series Connection for 350mA ; Parallel Connection for 12V Inclusion 50cm lead with connector Mounting Method Recessed LED Type COB LED Colour Temperature 3000K / 5000K Fitting Colour Silver / White Size D x H 40 x 22 mm Cut Size D 33 mm Dimming Option TRIAC, DALI, 1-10V Dimming Option available PDF File Add Inquiry Call Us Recommended Products
