G840 LED-350mA

description
1W LED Recessed wall light. Attractive and functional design with integrated LED Chip and magnetic mounting face with frost diffuser. When converted to 12VDC power consumption increase to 3W.
Wattage
1W
Input
350mA
IP Rating
IP20
Material
Aluminium
Inclusion
150 mm Double insulated cable
Include Driver
No. Recommend LEDDR7350T in 1:1 Configuration (350mA Version, non-Dimmable)
Dimmable
Constant current version: Optional ; 12V DC version: No
Wiring Method
Series Connection for 350mA / Parallel Connection for 12V
Lens
Tempered glass lens
Colour Temperature
3000K / 4000K / 6000K / Blue / Green / Red
Fitting Colour
Brushed Chrome / Satin Chrome / White
Size L x W x H
68 x 68 x 32 mm
Cut Size L x W
57 x 57 mm
Dimming Option
TRIAC, DALI, 1-10V Dimming Option available
PDF File
Call Us

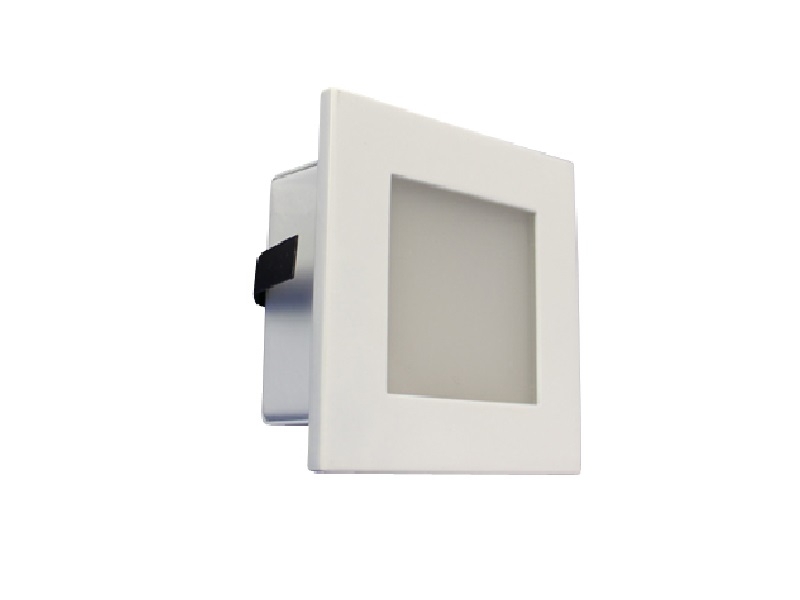

Plain face

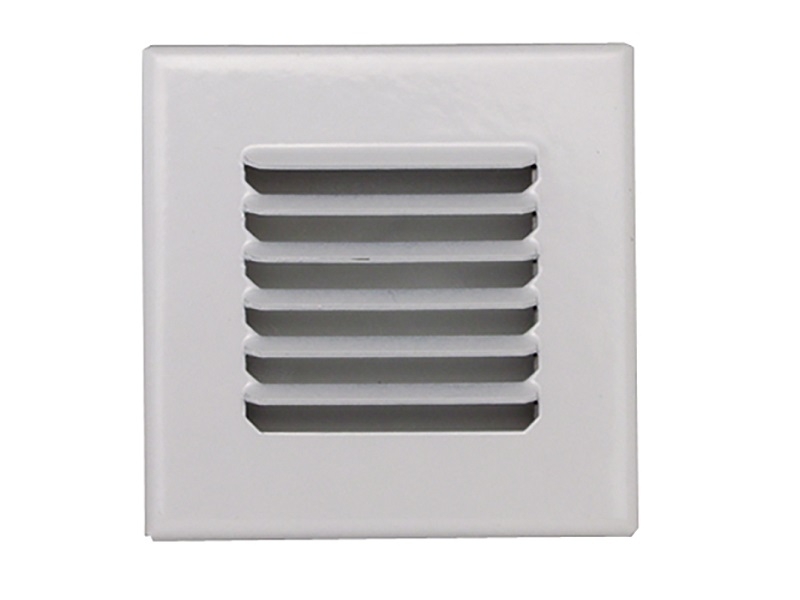

Louvered face

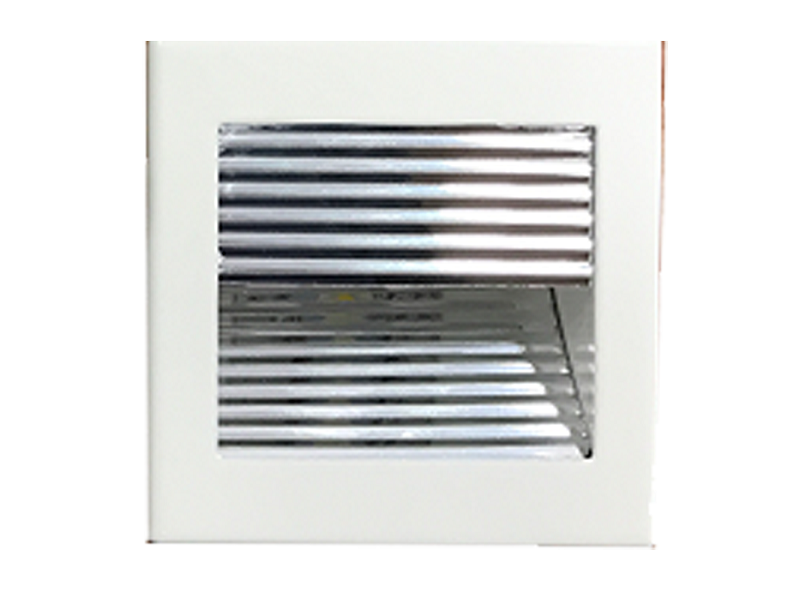

Ribbed face
