LED843-GR12V

description
1W LED wall light with clip on face. Louvred, Plain and Ribbed available.
Wattage
1W
Input
12V DC
IP Rating
IP20
Material
Aluminium/Frost Diffuser
Include Driver
No. Recommend LEDDR7350T in 1:1 Configuration (350mA Version, non-Dimmable)
Mounting Method
Recessed
Wiring Method
Series Connection for 350mA.Parallel Connection for 12V
LED Type
COB
Colour Temperature
3000K / 6000K / Blue / Green / Red
Fitting Colour
Grey
Size L x W x H
90 x 90 x 34 mm
Cut Size L x W
80 x 80 mm
PDF File
Call Us

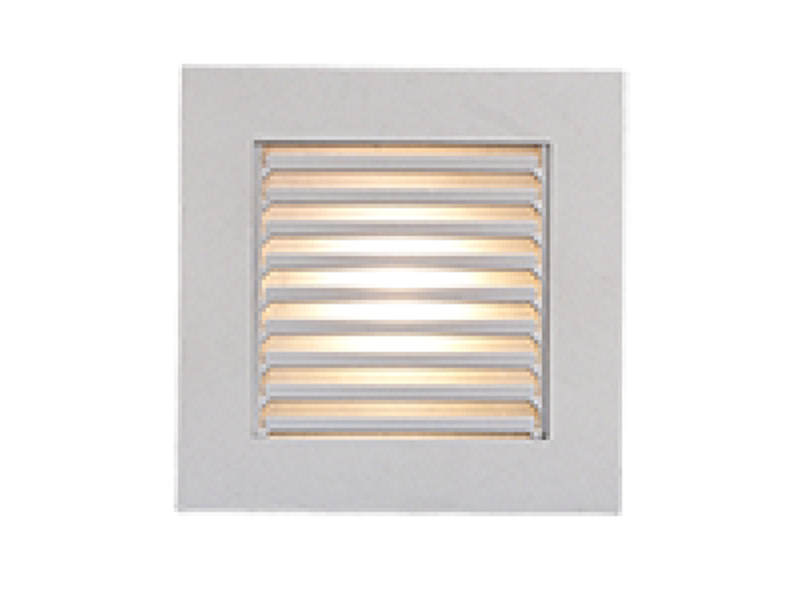

Louvered face

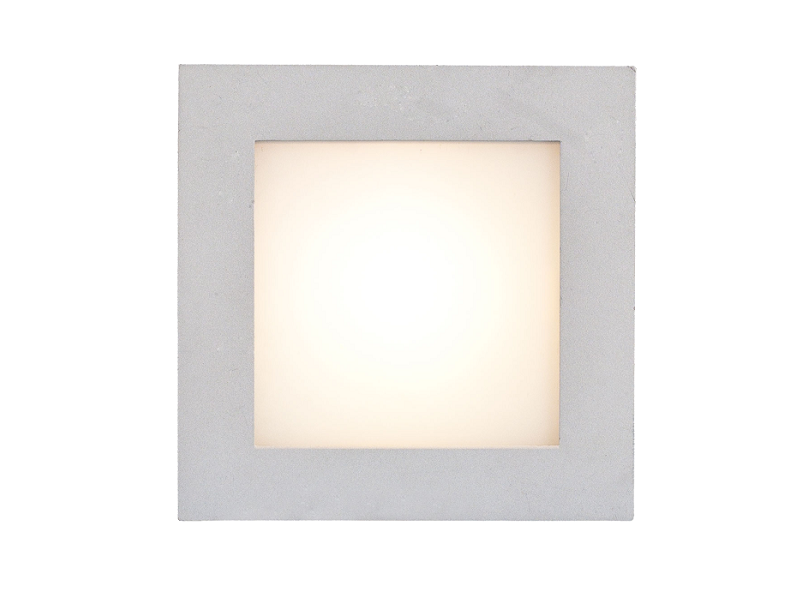

Plain face

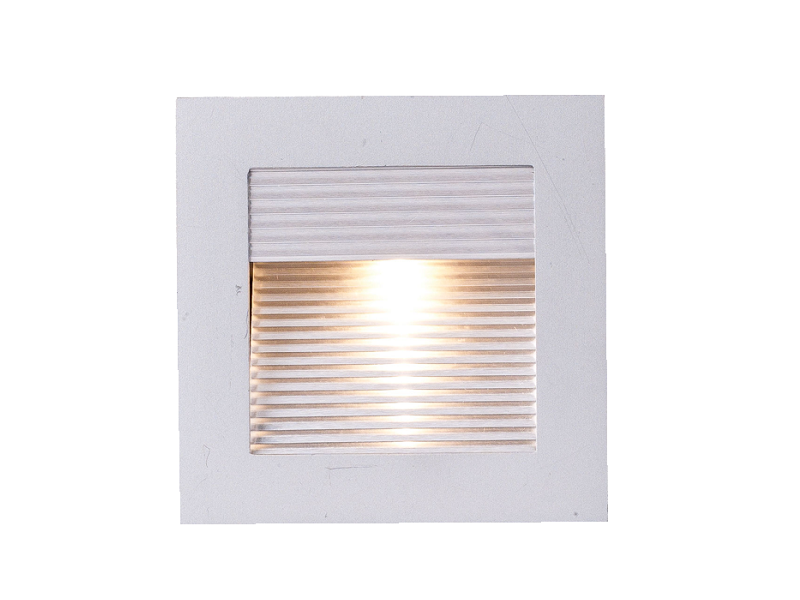

Ribbed face
