LED330R-12V LED330SQ-12V

description
1W Semi Recessed wall light.
Wattage
1W
Lumen Output
85 Lm / 92 Lm
Input
12V DC
IP Rating
IP20
Material
Aluminium
Dimmable
Yes, if dimmable driver used.
Include Driver
No. Recommend LEDDR7350T in 1:1 Configuration (350mA Version, non-Dimmable)
Wiring Method
Series Connection for 350mA, Parallel Connection for 12V
Inclusion
Quick connect plug
LED Type
COB
Colour Temperature
3000K / 4500K
Fitting Colour
Aluminium / White
Size D x H
40 x 40 mm
Cut Size D
25 mm
PDF File
Call Us

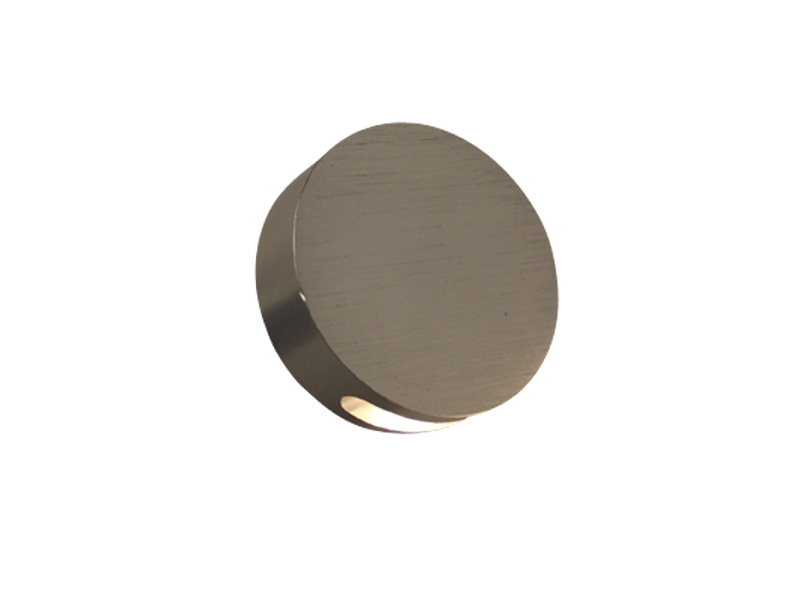

LED330R

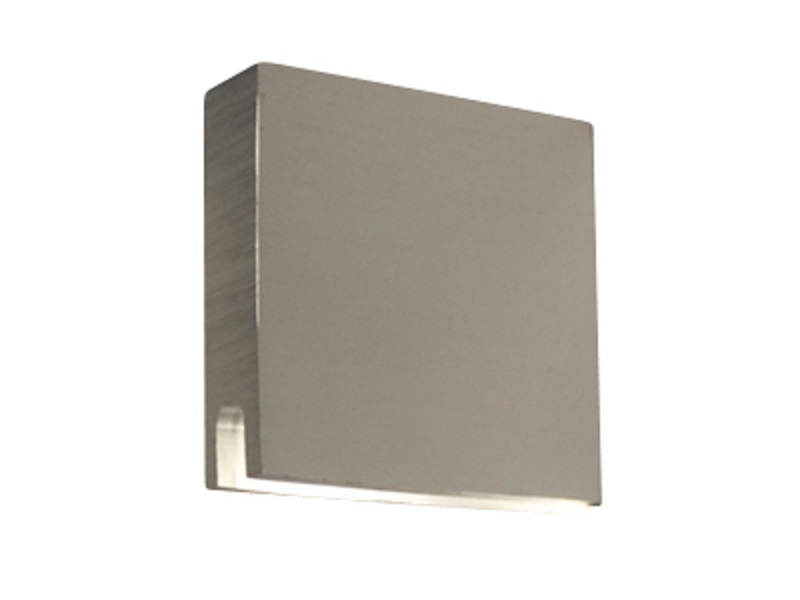

LED330SQ
