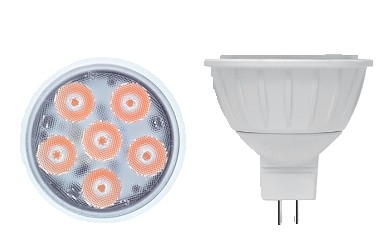

Share to LEDMR168W-E description The LEDMR168-E lamp is an economical lamp that matches the output of 35W halogen lamps. Featuring 22° or 38°beam angle and up to 580 lumen output, this lamp is ideal for domestic lighting and is compatible with 12V DC and 700mA drivers. This lamp is a speciality lamp that is also compatible with C-BUS leading edge systems when used with a compatible power source (such as our LEDDR16700DL / TM12VDC12WTD). Not suitable for use with 12V AC Electronic transformers, warranty is void if used with these. If used with 12V AC Ironcore transformers, the transformers must be loaded up to limit any output fluctuations. Wattage 8W Lumen Output 500 Lm Input 12V IP Rating IP 20 CRI Rating CRI 80 Beam angle 22° / 38° Dimmable Yes, if Dimmable Transformer is used. DALI dimming option available if use with our LEDDR15W-700DA Enclosable No Lamp Base MR16 Colour Temperature 3000K Size D x L 50 x 50 mm Dimming Option TRIAC, DALI Dimming Option available PDF File Add Inquiry Call Us Recommended Products
