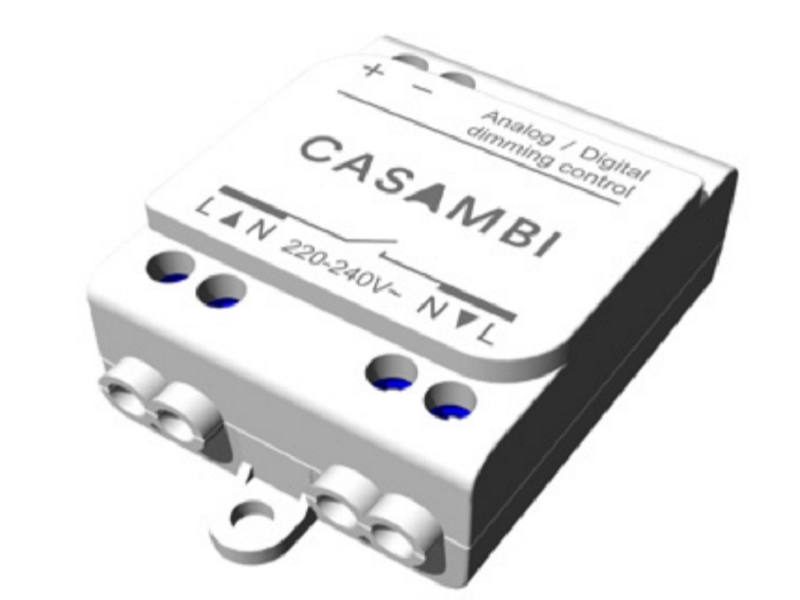

Share to LEDCASBTCON description Wireless control unit for LED and halogen drivers with 0-10V, 1-10V or DALI dimming interface. It is available with either analogue 0-10V (and 1-10V) or digital Standalone DALI control interface. With Standalone DALI output, LEDCASBTCON act as a controller and a power supply making it possible to connect directly to an LED driver with DALI interface without the need for an external DALI power supply. This is so called Standalone DALI makes it possible to implement multi-channel lighting systems with adjustable colour (RGB & RGBW) or colour temperature, while keeping the wiring and number of components at their minimum. Not compatible with IEC60929, there for it is not designed to be connected to an existing DALI next work. The module can be used only in a closed system. I.e. as a part of a lighting system which is not connected to an external DALI net work. It is controlled wirelessly with CASAMBI smart phone and tablet APP using Bluetooth 4.0 protocol. Devices form automatically a secure wireless mesh network so that a large number of fixtures can be controlled from any point. No external gateway module is needed. Can also be controlled from a standard On/Off wall switches. Input 220-240V AC 0-10V Output Voltage range between 0-10V DC, Maximum 1 x driver connected DALI Output Voltage range between 9-12V DC, Maximum 1 x driver connected IP Rating IP 20 APP operating System iOS: iPhone 4S or later; iPad 3 or later; iPod Touch 5th Gen or later Android: 4.4 KitKat or later devices produced after 2013 with full BT support Operating Range Indoor: up to 30m ; Outdoor: up to 50m. Range is highly dependant on the surrounding obstacles, such as walls and building material. Size 57 x 36 x 23 mm PDF File Add Inquiry Call Us Recommended Products
