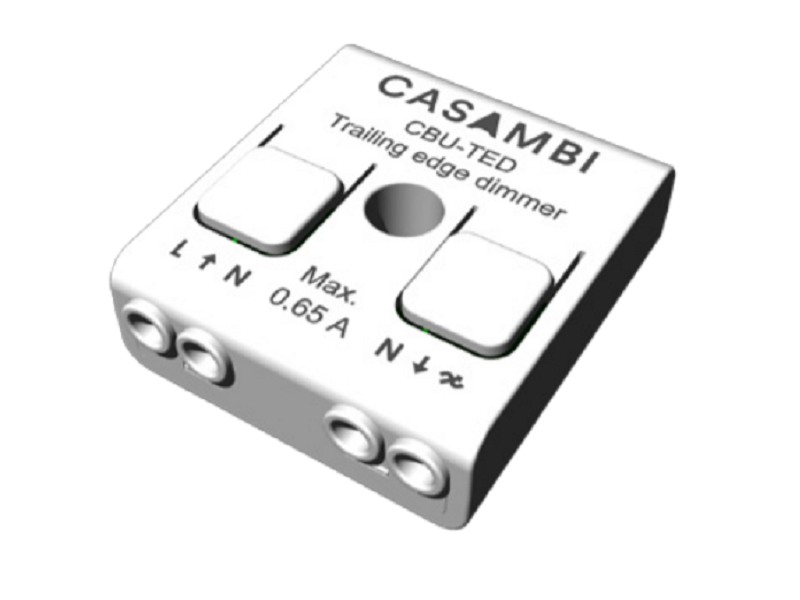

LEDCASBTDIM is a Bluetooth controllable, Casambi enabled trailing-edge dimmer for operation of incandescent lamp, dimmable LED lamps and dimmable LED control gear. It can be installed behind a traditional wall switch, inside a luminaire or into a ceiling outlet box. Maximum allowable ambient temperature must be observed. LEDCASBTDIM is able to control up to 150VA at 230VAC. It features an over-current and over temperature protection. LEDCASBTDIM can be controlled with Casambi APP, available for iOS and Android devices as well as with traditional wall switches.
85-240V AC
Voltage range between 0-10V DC, Maximum 1 x driver connected
Max. Output Power
150VA @ 230VAC ; 75VA @ 120VAC
Max Output Current
IP Rating
IP 20
Min. Load Requirement
APP operating System
iOS: iPhone 4S or later; iPad 3 or later; iPod Touch 5th Gen or later ; Android: 4.4 KitKat or later devices produced after 2013 with full BT support
Operating Range
Indoor: up to 30m ; Outdoor: up to 50m. Range is highly dependant on the surrounding obstacles, such as walls and building material.
41 x 37 x 14 mm
