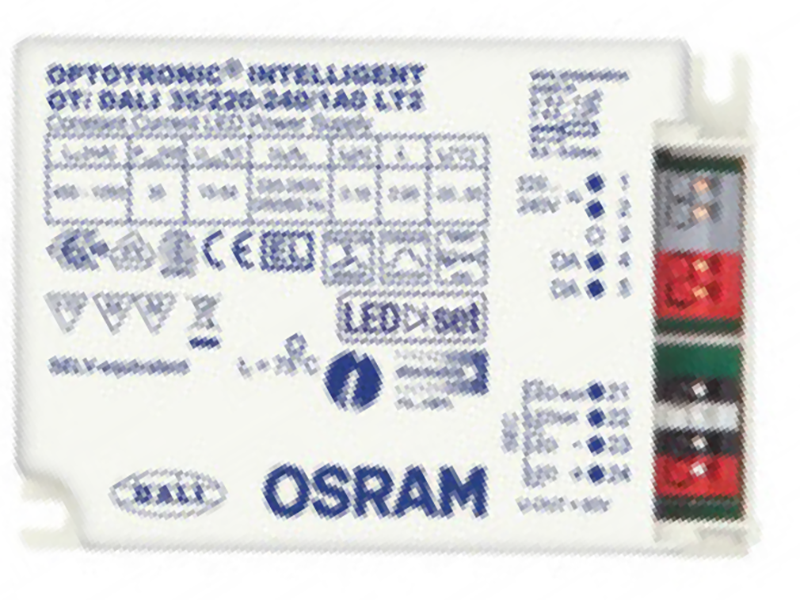

Share to LEDDR350-1050DA description Osram OTI DALI 15W and Osram OTI DALI 35W control gears. Available in a range of outputs ranging from 150-1050mA for the 15W, and 350-1050 for the 35W. Suitable for commercial fittings.Output set via matching resistor. Please advise the current you required when placing the order. Versatile DALI window driver due to flexible output characteristic. Very high efficiency and reliability. Protection of the system thanks to thermal management and Smart Control. High-quality dimming of 1-100% by amplitude dimming. Versatile scope of application due to OSRAM DALI Technology. Easy to use in corridors and rest rooms because of three-level Corridor function. Touch DIM application: easy to control via push-button or sensor. Energy efficient Touch DIM operation due to automatic switch-off at sufficient residual light. Suitable for emergency Installations (acc. to EN 60598-2-22 and IEC 61347-2-13, appendix J) thanks to DC detection (0 Hz, pulsating DC), Wattage 35W Input 240V Output 15-54V DC (Max. 60V) can be set from 350 to 1050 Dimming Interface DALI / Touch DIM / Touch DIM Sensor Dimming Method Amplitude Modulation / Pulse Width Modulation Size L x W x H 103 x 67 x 30 mm PDF File Add Inquiry Call Us Recommended Products
